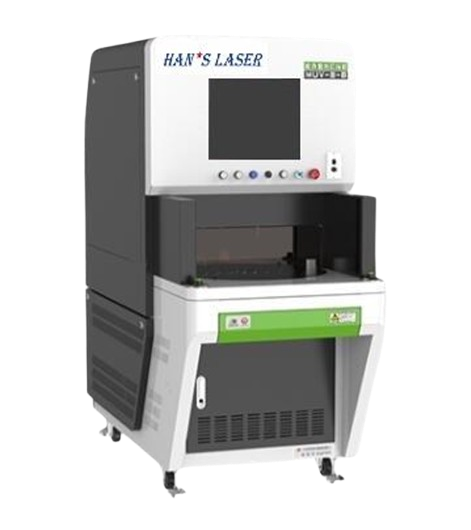

rotation 2-4 stations laser marking machine
SPECIFICATION
MUV-B-B
Laser Power
3W/5W/10W/15W
Wavelength
355nm
Voltage
AC220±10%、50/60HZ
Working Area
100mm×100mm
150mm×150mm
200mm×200mm
300×300mm
Marking Speed
0~8000mm/s
Overall Power
< 1600W
Working
Temperature：15~30°C；
Humidity：5~8
Humidity：5~8
Environment
form，no dust or littledust
Format
PLT, DXF, AI, JPG, PNG, BMP
Cooling type
Water cooling
PRODUCT FEATURES
Equipped with 355nm “Cold Laser Beam Source”, small laser beam with wide range of material application, realizing precision marking effects.
Enclosed design with light fence and saftey circuits, protect the operator.
Electrical door. When the door opens, laser stop.
Dual station design, loading product during another side marking.
Strong compatibility: Supporting the format of DXF, PLT as well as picture format; various kinds of typo fonts such as bitmap fonts, TTF fonts as well as fonts through independent R&D can beapplied.
