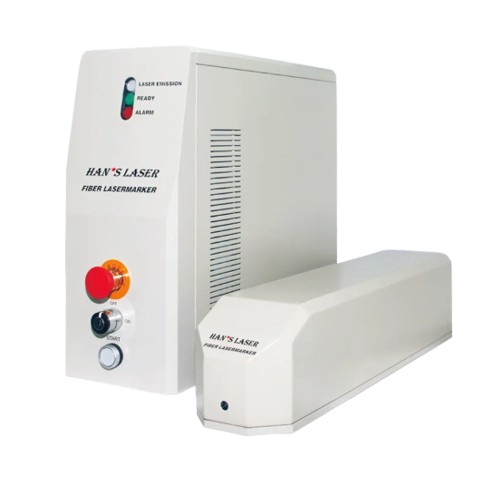

mars-10J/20J

brief description

  • Can be suitable for a variety of materials: steel, aluminum, silver, gold, silicon.
  • Suitable for various industries:
    Electronic components industry
    Medical device industry
    Glasses, watch and clock industry
    IC card industry
    Jewelry industry

Categories Fiber laser marking

SPECIFICATION

mars-10J/mars-20j

Laser output power
10W/20W
Wavelength
1064nm
Laser repetition frequency
20-80KHz
Marking scope
100mm×100mm(standard) 150mm×150mm(optional) 300mm×300mm(optional)
Marking Speed
≤7000mm/s
Repetition precision
±0.003mm
Input power
110~230VAC, 50/60 HZ
Power consumption
<500W
Cooling
Air cooling, fan/filter (no water cooling required)
Expected MTTF (Diode)
Greater than 100,000 hours

FEATURES

  • Utilizes the world’s largest source of Fiber lasers-IPG Photonics
  • Adopts the newest generation of laser marking control.
  • Integrates the encoder data port which can get the assembly line speed real time that is for flying marking application
  • Adopts one key starting with a simple interface
  • The appearance is compact with a simplified air cooling system.

Was developed according to CE and FDA/CDRH standard, meeting the strictest safety requirements.
