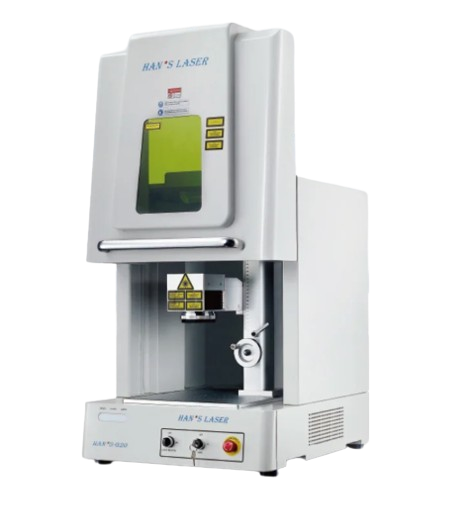

desktop machine G20

brief description

  • Various metal materials, part of non-metal materials.
  • The fiber optic laser oscillator marker has advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness and accuracy.

Categories Fiber laser marking

SPECIFICATION

G20

Laser output power
20W
Focus lens
F160(standard) / F254(optional)
Marking area
(F160)100mm x 100mm / (F254)160mm x 160mm
Wavelength
1064nm
Pulse repetition frequency
1.6KHz-1000KHz
Marking scope
100mm×100mm(standard) 150mm×150mm(optional) 300mm×300mm(optional)
Repetition precision
±0.0025mm
Power consumption
<500W
Cooling mode
Air cooling
Running temperature
15℃-35℃

FEATURES

  • Small and compact size, use common air-cooling system.
  • Fiber output, can apply flexibly, and easy to make 3D processing system.
  • Install backward reflecting isolator, which uses the particularity of wavelength and direction of laser, and the special structure inside the backward reflecting isolator, to block the laser reflected by work piece, in order to avoid the laser enter the laser oscillator again to damage the laser oscillator.
